The DrilScruChek™ Tester meets the testing requirements of the following specifications:

  • SAE J 78
  • Ford Motor ES-2002-5100
  • DIN 7504
  • GM 6172M
  • Chrysler PF-7251
  • JIS B1125

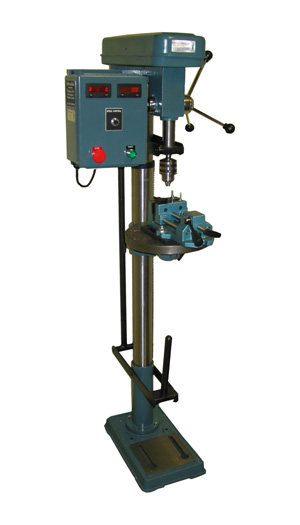

The DrilScruChek™ comes with weights from 20 to 60 pounds. It has variable speeds from 1800 to 2500 RPM and has a digital readout.

The test specifications above determine a drill screw’s acceptability based on its speed of drilling through .062 inch steel. The DrilScruChek™ performs these tests and is powerful enough to use in applications analysis and product development where the drill screws will he required to drill through much thicker materials.
